示例4.2

考虑图4.2所示的系统，受到谐波力\({f}_{1} = {\widehat{f}}_{1}\cos {\omega t}\)和\({f}_{2} = {\widehat{f}}_{2}\cos {\omega t}\)的作用，求其稳态响应幅值。当\({f}_{2} = 0\)时，绘制导纳(receptance)的频率响应曲线。

解。运动方程可写为

\[ \left\lbrack \begin{matrix} {2m} & 0 \\ 0 & m \end{matrix}\right\rbrack \left\{ \begin{array}{l} {\ddot{x}}_{1} \\ {\ddot{x}}_{2} \end{array}\right\} + \left\lbrack \begin{matrix} {3k} & - k \\ - k & k \end{matrix}\right\rbrack \left\{ \begin{array}{l} {x}_{1} \\ {x}_{2} \end{array}\right\} = \left\{ \begin{array}{l} {f}_{1} \\ {f}_{2} \end{array}\right\} . \]

利用坐标变换

\[ \{ x\} = \left\lbrack u\right\rbrack \{ q\} = \left\{ \begin{array}{l} 1 \\ 2 \end{array}\right\} {q}_{1} + \left\{ \begin{array}{r} 1 \\ - 1 \end{array}\right\} {q}_{2} = \left\lbrack \begin{array}{rr} 1 & 1 \\ 2 & - 1 \end{array}\right\rbrack \left\{ \begin{array}{l} {q}_{1} \\ {q}_{2} \end{array}\right\} \]

并在左侧乘以模态矩阵(modal matrix)的转置，我们得到

\[ \left\lbrack \begin{matrix} 1 & 2 \\ 1 & - 1 \end{matrix}\right\rbrack \left\lbrack \begin{matrix} {2m} & 0 \\ 0 & m \end{matrix}\right\rbrack \left\lbrack \begin{matrix} 1 & 1 \\ 2 & - 1 \end{matrix}\right\rbrack \left\{ \begin{array}{l} {\ddot{q}}_{1} \\ {\ddot{q}}_{2} \end{array}\right\} + \left\lbrack \begin{matrix} 1 & 2 \\ 1 & - 1 \end{matrix}\right\rbrack \left\lbrack \begin{matrix} {3k} & - k \\ - k & k \end{matrix}\right\rbrack \left\lbrack \begin{matrix} 1 & 1 \\ 2 & - 1 \end{matrix}\right\rbrack \left\{ \begin{array}{l} {q}_{1} \\ {q}_{2} \end{array}\right\} = \left\lbrack \begin{matrix} 1 & 2 \\ 1 & - 1 \end{matrix}\right\rbrack \left\{ \begin{array}{l} {f}_{1} \\ {f}_{2} \end{array}\right\} \]

或

\[ \left\lbrack \begin{matrix} {6m} & 0 \\ 0 & {3m} \end{matrix}\right\rbrack \left\{ \begin{array}{l} {\ddot{q}}_{1} \\ {\ddot{q}}_{2} \end{array}\right\} + \left\lbrack \begin{matrix} {3k} & 0 \\ 0 & {6k} \end{matrix}\right\rbrack \left\{ \begin{array}{l} {q}_{1} \\ {q}_{2} \end{array}\right\} = \left\{ \begin{array}{l} {f}_{1} + 2{f}_{2} \\ {f}_{1} - {f}_{2} \end{array}\right\} = \left\{ \begin{array}{l} {F}_{1} \\ {F}_{2} \end{array}\right\} . \]

对于谐波激励\(\{ f\} = \left\{ \widehat{f}\right\} \cos {\omega t}\)，稳态响应为

\(\{ q\} = \{ \widehat{q}\} \cos {\omega t}\) . 模态坐标(modal coordinates)的幅值

\[ {\widehat{q}}_{1} = \frac{{\widehat{F}}_{1}}{{3k} - {\omega }^{2}{6m}} = \frac{{\widehat{f}}_{1} + 2{\widehat{f}}_{2}}{{3k}\left( {1 - {\omega }^{2}/{\omega }_{1}^{2}}\right) },\;{\widehat{q}}_{2} = \frac{{\widehat{F}}_{2}}{{6k} - {\omega }^{2}{3m}} = \frac{{\widehat{f}}_{1} - {\widehat{f}}_{2}}{{6k}\left( {1 - {\omega }^{2}/{\omega }_{2}^{2}}\right) }. \]

构型空间中的振幅由

\[ \{ \widehat{x}\} = \frac{\lfloor 1\;2\rfloor \{ \widehat{f}\} \{ \frac{1}{2}\} }{{3k}\left( {1 - {\omega }^{2}/{\omega }_{1}^{2}}\right) } + \frac{\lfloor 1 - 1\rfloor \{ \widehat{f}\} \{ \frac{1}{-1}\} }{{6k}\left( {1 - {\omega }^{2}/{\omega }_{2}^{2}}\right) }. \]

当\({f}_{2} = 0\)和\({f}_{1} = f\)时，振幅向量可表示为

\[ \{ \widehat{x}\} = \frac{\lfloor 1\;2\rfloor \left\{ \begin{array}{l} \widehat{f} \\ 0 \end{array}\right\} \left\{ \begin{array}{l} 1 \\ 2 \end{array}\right\} }{{3k}\left( {1 - {\omega }^{2}/{\omega }_{1}^{2}}\right) } + \frac{\lfloor 1 - 1\rfloor \left\{ \begin{array}{l} \widehat{f} \\ 0 \end{array}\right\} \left\{ \begin{matrix} 1 \\ - 1 \end{matrix}\right\} }{{6k}\left( {1 - {\omega }^{2}/{\omega }_{2}^{2}}\right) } \]

而导纳(receptances)为

\[ {\alpha }_{11} = \frac{{\widehat{x}}_{1}}{\widehat{f}} = \frac{1}{{3k}\left( {1 - \frac{{\omega }^{2}}{{\omega }_{1}^{2}}}\right) } + \frac{1}{{6k}\left( {1 - \frac{{\omega }^{2}}{{\omega }_{2}^{2}}}\right) },\;{\alpha }_{21} = \frac{{\widehat{x}}_{2}}{\widehat{f}} = \frac{2}{{3k}\left( {1 - \frac{{\omega }^{2}}{{\omega }_{1}^{2}}}\right) } + \frac{-1}{{6k}\left( {1 - \frac{{\omega }^{2}}{{\omega }_{2}^{2}}}\right) }, \]

或

\[ \frac{{\widehat{x}}_{1}}{\widehat{f}} = \frac{1}{{6m}\left( {{\omega }_{1}^{2} - {\omega }^{2}}\right) } + \frac{1}{{3m}\left( {{\omega }_{2}^{2} - {\omega }^{2}}\right) },\;\frac{{\widehat{x}}_{2}}{\widehat{f}} = \frac{1}{{3m}\left( {{\omega }_{1}^{2} - {\omega }^{2}}\right) } - \frac{1}{{3m}\left( {{\omega }_{2}^{2} - {\omega }^{2}}\right) }. \]

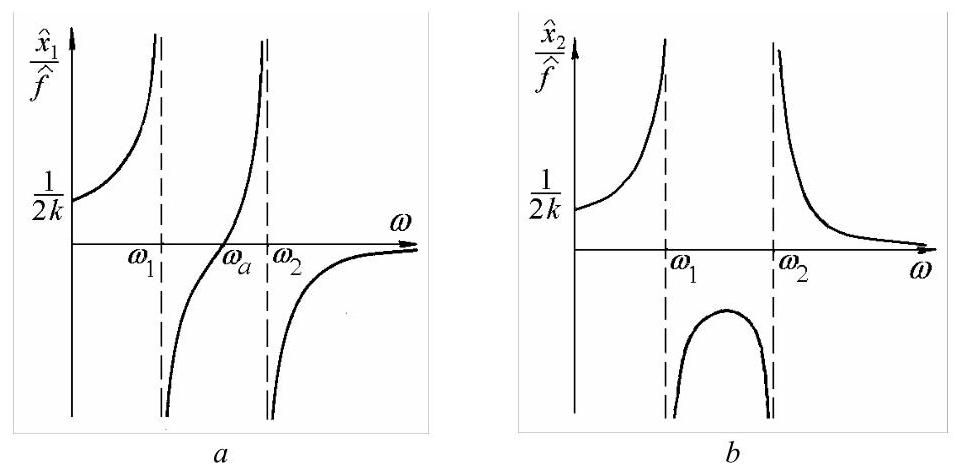

频率响应曲线如图4.5所示。

图4.5

当激励频率等于系统的任一固有频率时，在\({\omega }_{1} = \frac{1}{\sqrt{2}}\sqrt{\frac{k}{m}}\)和\({\omega }_{2} = \sqrt{2}\sqrt{\frac{k}{m}}\)处发生共振。当\(\omega = {\omega }_{a} = \sqrt{\frac{k}{m}}\)时，第一质量块在空间保持静止，\({\widehat{x}}_{1} = 0\)，而第二质量块运动，\({\widehat{x}}_{2} \neq 0\)，此状态定义为反共振。反共振频率等于由弹簧\(k\)和质量\(m\)组成的子系统的固有频率。该子系统称为动力吸振器(dynamic vibration absorber)。由外加力每周期引入系统的能量进入该振动系统部分，使质量\({2m}\)在空间保持静止，这一条件在许多实际应用中非常理想。

4.1.5.2 频谱分析求解

将(4.34)和(4.35)代入方程(4.31, a)，我们得到

\[ \left( {\left\lbrack k\right\rbrack - {\omega }^{2}\left\lbrack m\right\rbrack }\right) \{ \widehat{x}\} = \{ \widehat{f}\} , \tag{4.43} \]

或

\[ \{ \widehat{x}\} = {\left( \left\lbrack k\right\rbrack - {\omega }^{2}\left\lbrack m\right\rbrack \right) }^{-1}\{ \widehat{f}\} . \tag{4.44} \]

方程(4.43)表示一组线性代数方程，可用克拉默法则(Cramer's rule)求解。方程(4.44)中的求逆从不实际执行。

Example 4.3

例4.3

考虑图4.2所示系统，受到谐波驱动力\({f}_{1} = {\widehat{f}}_{1}\cos {\omega t}\)作用，通过直接频谱分析求其稳态响应幅值。

解:运动方程(4.31)为

\[ {2m}{\ddot{x}}_{1} + {3k}{x}_{1} - k{x}_{2} = {\widehat{f}}_{1}\cos {\omega t}, \]

\[ m{\ddot{x}}_{2} - k{x}_{1} + k{x}_{2} = 0. \]

将解(4.35)代入上述方程，我们得到一组两个代数方程

\[ \left( {{3k} - {\omega }^{2}{2m}}\right) {\widehat{x}}_{1} - k{\widehat{x}}_{2} = {\widehat{f}}_{1}, \]

\[ -k{\widehat{x}}_{1} + \left( {k - {\omega }^{2}m}\right) {\widehat{x}}_{2} = 0. \]

利用克拉默法则，幅值\({\widehat{x}}_{1}\)和\({\widehat{x}}_{2}\)为

\[ {\widehat{x}}_{1} = \frac{\left| \begin{matrix} 1 & - k \\ 0 & k - {\omega }^{2}m \end{matrix}\right| \widehat{f}}{\left| \begin{matrix} {3k} - {\omega }^{2}{2m} & - k \\ - k & k - {\omega }^{2}m \end{matrix}\right| } = \frac{\left( {k - {\omega }^{2}m}\right) \widehat{f}}{\left( {{3k} - {\omega }^{2}{2m}}\right) \left( {k - {\omega }^{2}m}\right) - {k}^{2}}, \]

\[ {\widehat{x}}_{2} = \frac{\left| \begin{matrix} {3k} - {\omega }^{2}{2m} & 1 \\ - k & 0 \end{matrix}\right| \widehat{f}}{\left| \begin{matrix} {3k} - {\omega }^{2}{2m} & - k \\ - k & k - {\omega }^{2}m \end{matrix}\right| } = \frac{k\widehat{f}}{\left( {{3k} - {\omega }^{2}{2m}}\right) \left( {k - {\omega }^{2}m}\right) - {k}^{2}}, \]

或写成与模态分析所得形式接近的表达式

\[ {\widehat{x}}_{1} = \frac{\left( {\frac{k}{m} - {\omega }^{2}}\right) \widehat{f}}{{2m}\left( {\frac{k}{2m} - {\omega }^{2}}\right) \left( {\frac{2k}{m} - {\omega }^{2}}\right) },\;{\widehat{x}}_{2} = \frac{\frac{k}{m}\widehat{f}}{{2m}\left( {\frac{k}{2m} - {\omega }^{2}}\right) \left( {\frac{2k}{m} - {\omega }^{2}}\right) }. \]

分母可识别为特征行列式，当激励频率等于任一固有频率时，幅值将无限增大。系统存在两个共振。

Matlab Demo

%% 1. 初始化
clear;          % 清除工作区变量
clc;            % 清空命令行窗口
close all;      % 关闭所有图形窗口

%% 2. 系统参数定义
m = 1;      % 质量单位 (例如: kg)
k = 2;      % 刚度单位 (例如: N/m)
f_hat = 1;  % 输入激励力f1的幅值 (用于归一化)
fprintf('系统参数设置为:\n m = %g\n k = %g\n\n', m, k);

%% 3. 计算关键频率
w1_sq = k / (2*m);
w2_sq = 2 * k / m;
w1 = sqrt(w1_sq);
w2 = sqrt(w2_sq);
wa = sqrt(k/m);
fprintf('关键频率计算结果:\n');
fprintf('  固有频率 w1 = %.3f rad/s (第一共振点)\n', w1);
fprintf('  固有频率 w2 = %.3f rad/s (第二共振点)\n', w2);
fprintf('  反共振频率 wa = %.3f rad/s (m1静止点)\n\n', wa);

%% 4. 计算并绘制静态频率响应曲线
w = linspace(0, 2.5 * w2, 2000);
denominator = 2*m * (w1_sq - w.^2) .* (w2_sq - w.^2);
denominator(abs(denominator)<1e-6) = eps;
numerator_x1 = (k/m - w.^2) * f_hat;
numerator_x2 = (k/m) * f_hat;
x1_hat = numerator_x1 ./ denominator;
x2_hat = numerator_x2 ./ denominator;
alpha_11 = x1_hat / f_hat;
alpha_21 = x2_hat / f_hat;

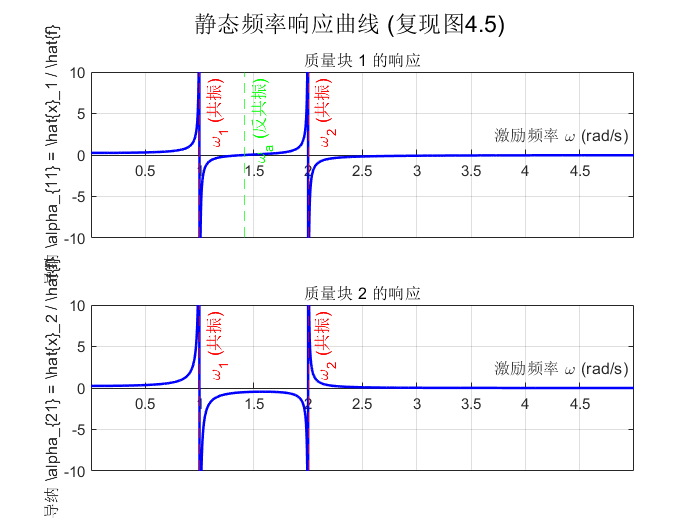

figure('Name', '静态频率响应曲线 (导纳)', 'NumberTitle', 'off');
sgtitle('静态频率响应曲线 (复现图4.5)');
subplot(2, 1, 1);
plot(w, alpha_11, 'b-', 'LineWidth', 1.5);
hold on; grid on;
xline(w1, '--r', '\omega_1 (共振)');
xline(w2, '--r', '\omega_2 (共振)');
xline(wa, '--g', '\omega_a (反共振)');
title('质量块 1 的响应');
xlabel('激励频率 \omega (rad/s)');
ylabel('导纳 \alpha_{11} = \hat{x}_1 / \hat{f}');
ylim([-10, 10]);
ax = gca; ax.XAxisLocation = 'origin'; ax.YAxisLocation = 'origin';
subplot(2, 1, 2);
plot(w, alpha_21, 'b-', 'LineWidth', 1.5);
hold on; grid on;
xline(w1, '--r', '\omega_1 (共振)');
xline(w2, '--r', '\omega_2 (共振)');
title('质量块 2 的响应');
xlabel('激励频率 \omega (rad/s)');
ylabel('导纳 \alpha_{21} = \hat{x}_2 / \hat{f}');
ylim([-10, 10]);
ax = gca; ax.XAxisLocation = 'origin'; ax.YAxisLocation = 'origin';

fprintf('静态频率响应图已生成。\n');
fprintf('接下来将开始播放系统动态行为的动画...\n');
pause(2);

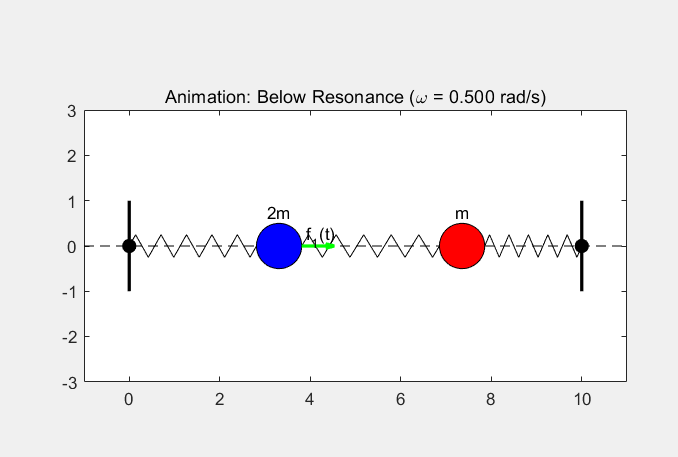

%% 5. 动态行为动画演示
animate_omegas = [0.5*w1, w1, wa, 1.5*w1, w2, 1.2*w2];
animate_labels = {'Below Resonance', 'Near 1st Resonance (w1)', 'Anti-Resonance (wa)', 'Between Resonances', 'Near 2nd Resonance (w2)', 'Above Resonance'};

anim_fig = figure('Name', 'System Dynamic Behavior Animation', 'NumberTitle', 'off');
ax_anim = axes(anim_fig);

% 动画参数
mass_diameter = 1.0;
mass_radius = mass_diameter / 2;
equil_pos1 = 3;
equil_pos2 = 7;
right_wall_pos = 10;

for i = 1:length(animate_omegas)
    omega_anim = animate_omegas(i);

    denom_anim = 2*m * (w1_sq - omega_anim^2) * (w2_sq - omega_anim^2);
    if abs(denom_anim) < 0.1
        amp_limit = 1.5;
        x1_amp = min(amp_limit, max(-amp_limit, (k/m - omega_anim^2) / denom_anim));
        x2_amp = min(amp_limit, max(-amp_limit, (k/m) / denom_anim));
    else
        x1_amp = (k/m - omega_anim^2) / denom_anim;
        x2_amp = (k/m) / denom_anim;
    end

    t_period = 2*pi/omega_anim;
    t = linspace(0, 3*t_period, 200);

    for j = 1:length(t)
        cla(ax_anim); % 清除上一帧

        pos1 = equil_pos1 + x1_amp * cos(omega_anim * t(j));
        pos2 = equil_pos2 + x2_amp * cos(omega_anim * t(j));

        % 绘制X轴作为参考线
        plot(ax_anim, [-1, right_wall_pos + 1], [0, 0], 'k--');
        hold(ax_anim, 'on');

        plot(ax_anim, [0, 0], [-mass_diameter, mass_diameter], 'k-', 'LineWidth', 2); % 左墙
        plot(ax_anim, [right_wall_pos, right_wall_pos], [-mass_diameter, mass_diameter], 'k-', 'LineWidth', 2); % 右墙
        plot(ax_anim, 0, 0, 'ko', 'MarkerFaceColor', 'k', 'MarkerSize', 8); % 左侧黑点
        plot(ax_anim, right_wall_pos, 0, 'ko', 'MarkerFaceColor', 'k', 'MarkerSize', 8); % 右侧黑点

        plot_spring(ax_anim, 0, pos1 - mass_radius, mass_radius); % 墙到m1
        plot_spring(ax_anim, pos1 + mass_radius, pos2 - mass_radius, mass_radius); % m1到m2
        plot_spring(ax_anim, pos2 + mass_radius, right_wall_pos, mass_radius); % m2到右墙

        rectangle(ax_anim, 'Position', [pos1-mass_radius, -mass_radius, mass_diameter, mass_diameter], 'FaceColor', 'b', 'Curvature', [1 1]);
        rectangle(ax_anim, 'Position', [pos2-mass_radius, -mass_radius, mass_diameter, mass_diameter], 'FaceColor', 'r', 'Curvature', [1 1]);
        text(ax_anim, pos1, mass_radius*1.5, '2m', 'HorizontalAlignment', 'center');
        text(ax_anim, pos2, mass_radius*1.5, 'm', 'HorizontalAlignment', 'center');

        arrow_start_x = pos1 + mass_radius;
        arrow_vector_x = 0.8*cos(omega_anim*t(j));
        quiver(ax_anim, arrow_start_x, 0, arrow_vector_x, 0, 'Color', 'g', 'LineWidth', 2, 'MaxHeadSize', 0.8);
        text(ax_anim, arrow_start_x+0.1, 0.2, 'f_1(t)');

        axis(ax_anim, 'equal');
        xlim(ax_anim, [-1, right_wall_pos + 1]);
        ylim(ax_anim, [-3, 3]);
        title(ax_anim, sprintf('Animation: %s (\\omega = %.3f rad/s)', animate_labels{i}, omega_anim));

        drawnow;
        pause(0.01);
    end
    pause(1);
end

function plot_spring(ax, x1, x2, height)
    if abs(x1-x2) < 1e-6, return; end
    nodes = 10;
    x_coords = linspace(x1, x2, nodes * 2 + 1);
    y_coords = zeros(1, length(x_coords));
    pattern = repmat([1, -1], 1, ceil(nodes / 2));
    y_coords(2:2:end-1) = height / 2 * pattern(1:nodes);
    plot(ax, x_coords, y_coords, 'k-');
end
